Flexible LED Light Sheet with Lens for Marble Backlighting DC24V 98LEDs Cuttable Dotless Uniform

Flexible LED Light Sheet with Lens for Marble Backlighting DC24V 98LEDs Cuttable Dotless Uniform

Lens LED flexible sheet, 98 LEDs, cuttable & bendable, dotless marble backlighting, DC24V, 3M tape.

Product Name : Lens Marble LED Flexible Light Board

LED quantity : 98 pieces/piece

LED chip : SMD2835

Lens angle : 170 °

Size : 500 × 250mm

Voltage : DC24V

Power : 20W/piece

Color rendering index : (CRI) ≥ 90

Color temperature options : 2700K/3000K/4000K/6000K

Protection level : IP20 (for indoor use)

Installation method : 3M double-sided tape pasting/screw fixation

Crop method : Crop in any direction along the crop mark

Certification : CE, RoHS, UL, ETL

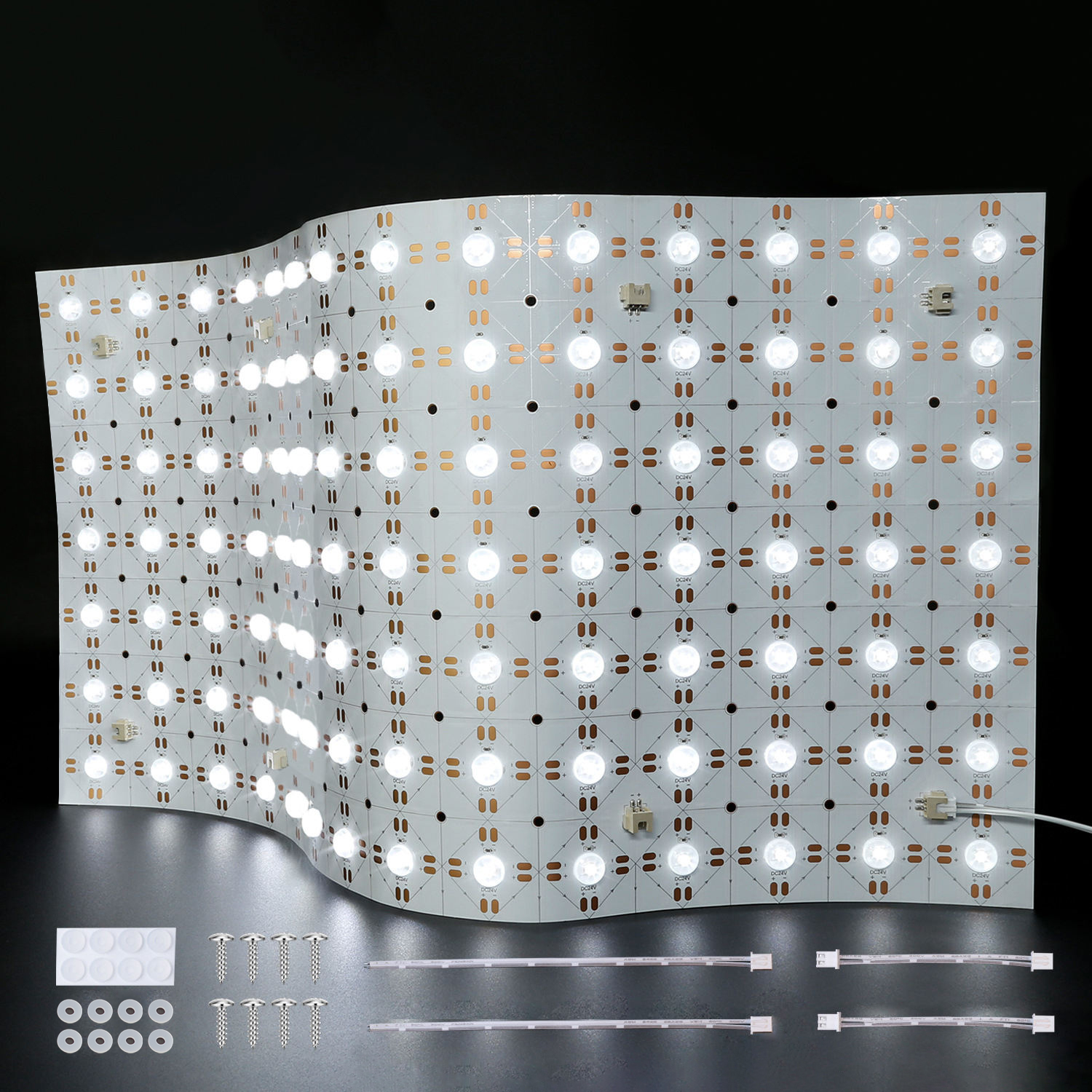

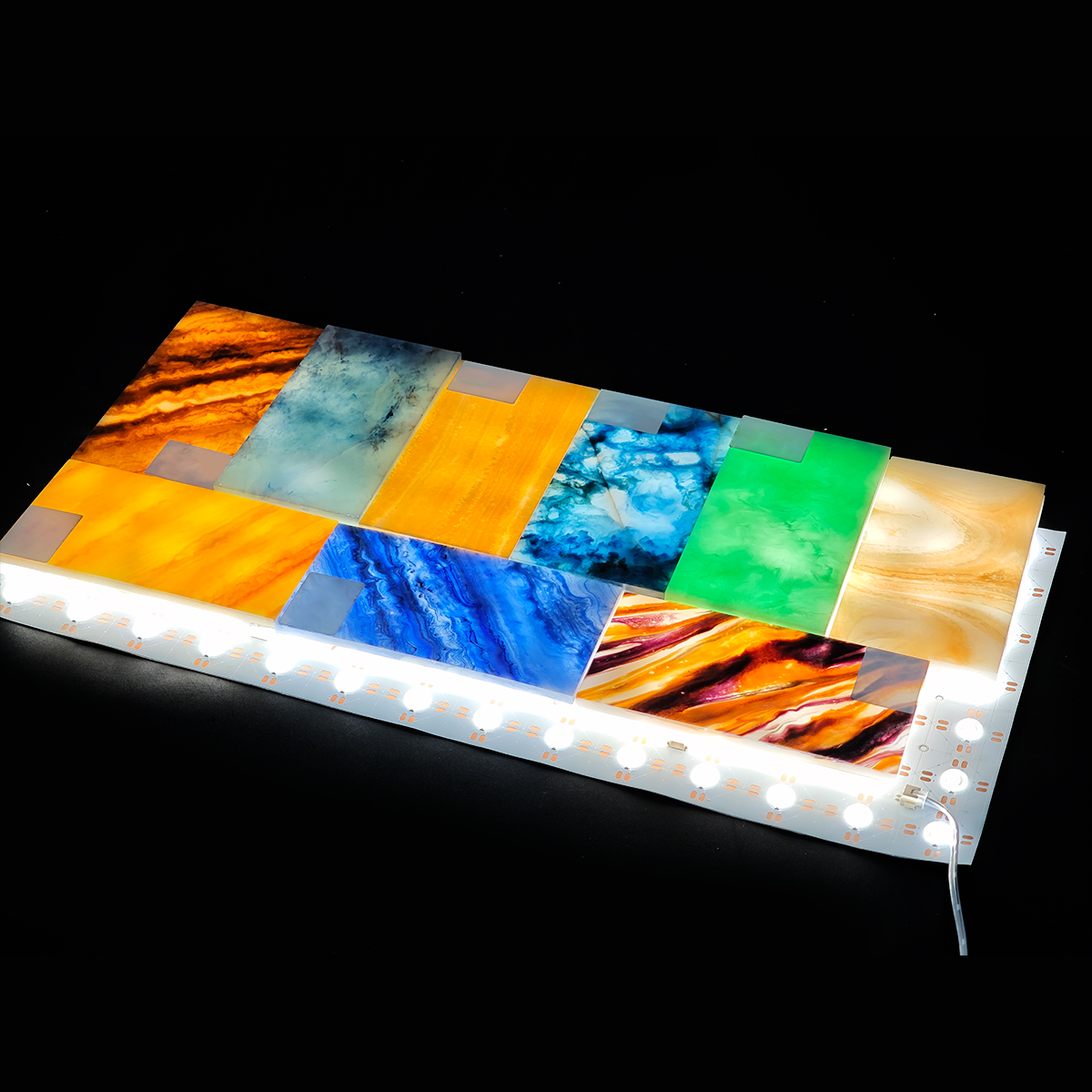

The lens type marble LED flexible light board is a flexible surface light source product designed specifically for backlighting with translucent stone materials. Adopting high-density 98 SMD2835 LED beads and a 170 ° wide-angle optical lens to achieve uniform light emission without dark areas or hot spots; FPC flexible substrate can be bent freely, suitable for complex installation scenarios such as curved walls and irregular countertops; Support free cutting along cutting marks, flexibly matching different size requirements.

1. 170 ° optical lens - truly no dark areas
Each lamp bead is equipped with a 170 ° wide-angle lens, which has a much larger light diffusion angle than ordinary bare bead lamp boards, eliminating shadows between lamp beads and achieving uniform surface light sources. Even if closely attached to the back of the marble, there are no visible hotspots or dark areas.

2. High density 98 lamp/sheet - uniform brightness

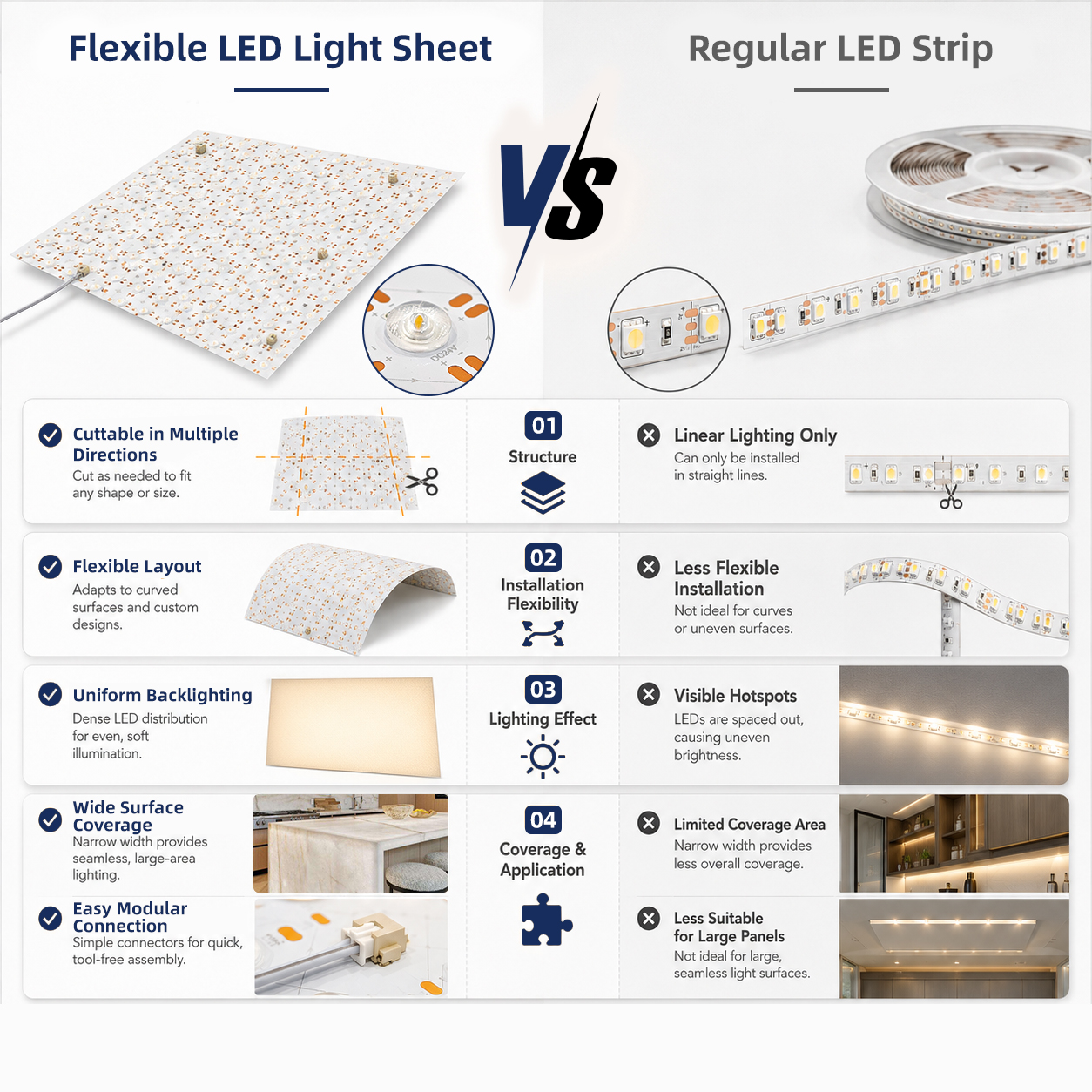

Each 500 × 250mm lamp board is integrated with 98 high brightness SMD2835 lamp beads, with a high density of beads and a continuous and uninterrupted light-emitting surface. Compared to the problem of light spot caused by the large spacing between LED strips and beads in ordinary LED lights, this product achieves a true "surface light source".

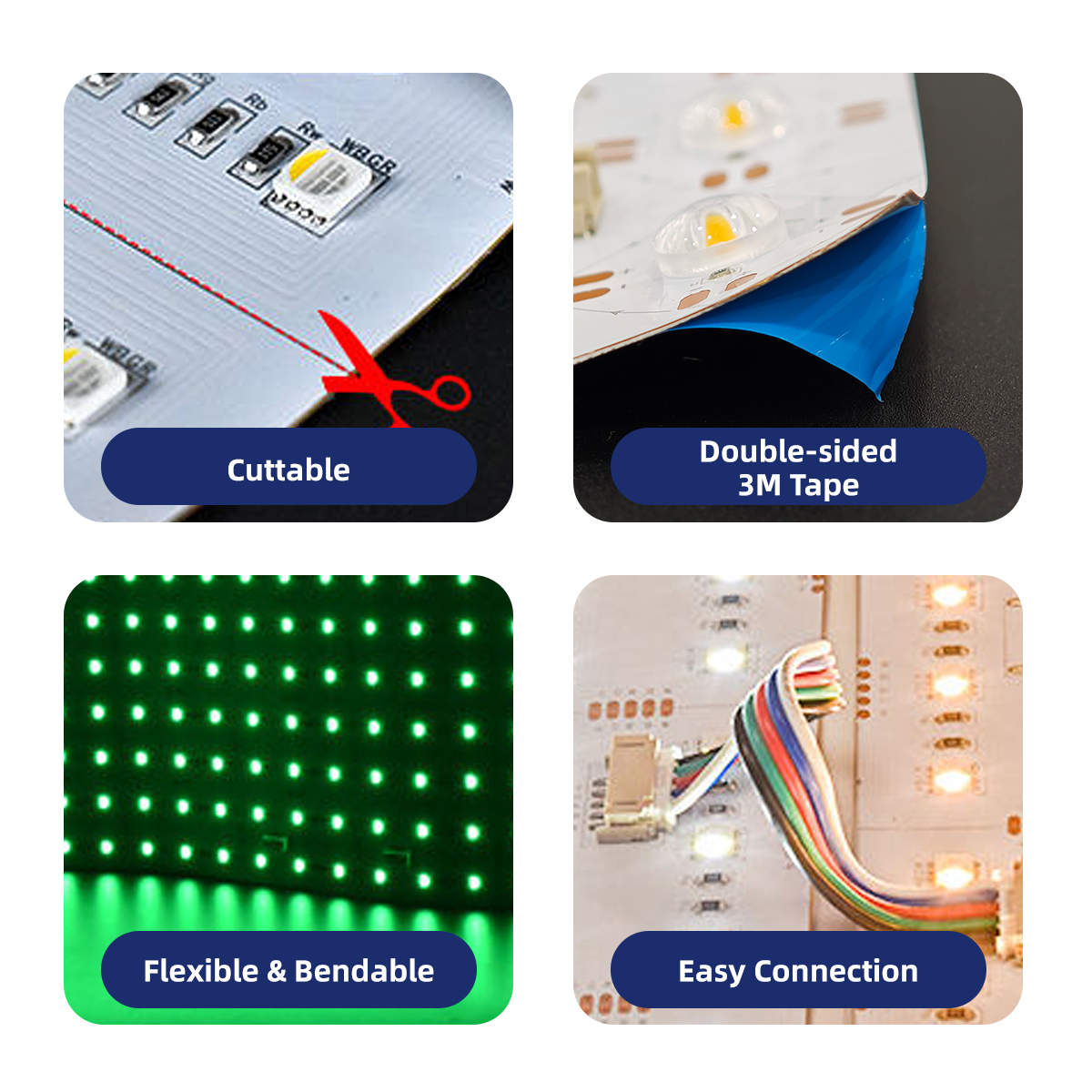

3. Free cutting - customized as needed
Print cutting marks along the board surface, supporting horizontal/vertical/diagonal cutting. On site construction can be flexibly adjusted according to actual dimensions, reducing customization waiting time and material waste.

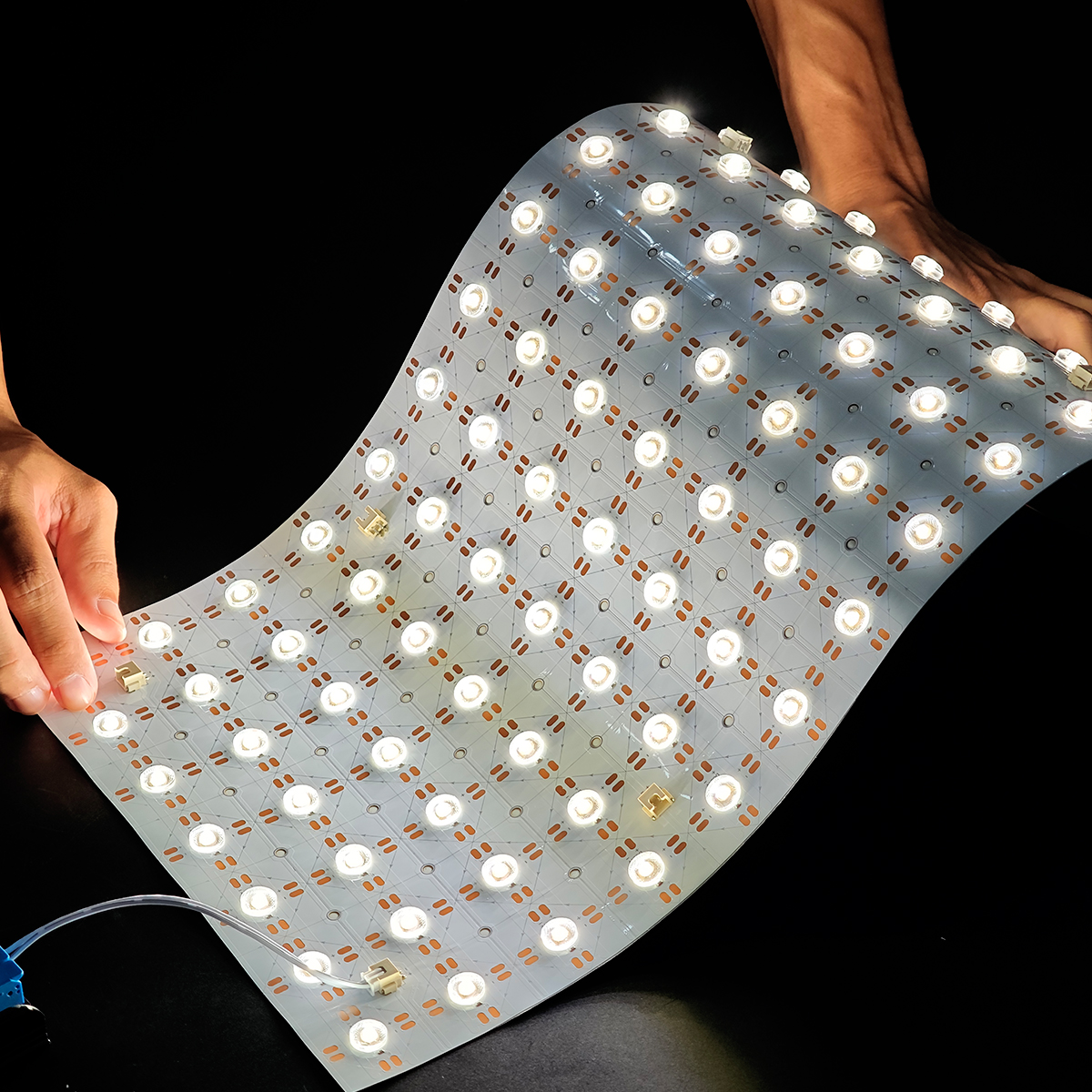

4. Flexible and bendable - adaptable to irregular surfaces

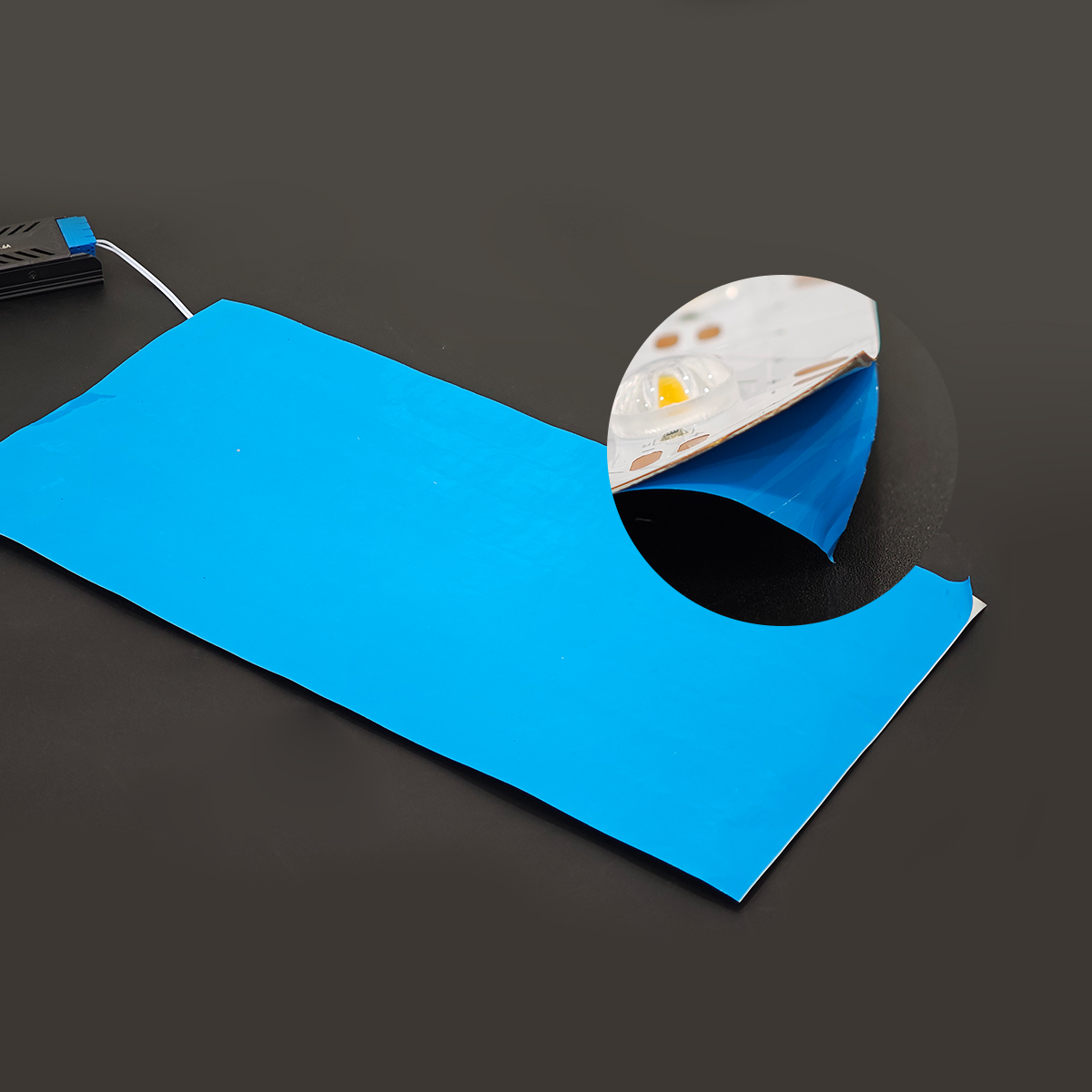

Using high toughness FPC flexible substrate, it can bend and adhere to irregular surfaces such as curved walls, cylinders, and curved countertops. Paired with double-sided 3M adhesive on the back, it is securely and conveniently installed.

5. DC24V safe low voltage - fully certified
DC24V power supply, safe and reliable, suitable for commercial and home scenarios. The product has passed international certifications such as CE, UL, RoHS, etc., with a warranty of 3-5 years.
